产品介绍
黎全公司生产的CDLF型轻型不锈钢立式多级泵（以下简称泵）是采用标准立式电机和快装式机械密封，更换方便。泵的过流部分均采用不锈钢（304\316）材料制成，可适用于轻度腐蚀性介质。该产品可替代国外CR、CRN等同类产品。产品投放市场后，以其高效节能、质量可靠、使用范围广等特点，深受广大用户的喜爱。
产品原理
1、采用优良的水力模型和先进的制造工艺，大大提高泵的性能及使用寿命。
2、由于轴封采用材料为硬质合金及氟橡胶的机械密封，可提高泵运行的可靠性及输送介质的温度。
3、泵的过流部分采用不锈钢板冲压焊接而成，使得泵可适用于轻度腐蚀性介质。
4、整体结构紧凑、体积小、重量轻、噪声低、节能效果显著，检修方便。
5、泵的进水口与出水口位于泵座同一水平线上，可直接用于管路当中。
6、采用标准电机，用户可方便地根据需要配备电机。
7、可根据用户需要配备智能保护器，对泵干转、缺相、过载等进行有效保护。

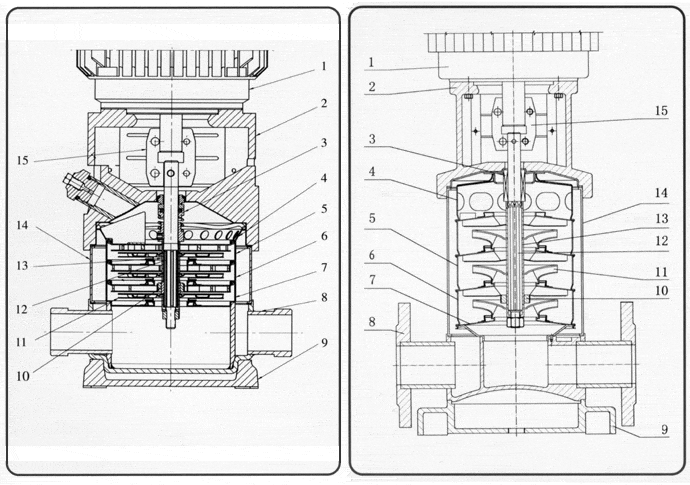

CDLF型轻型不锈钢立式多级泵结构图：
|
序号
|
名称
|
材料
|
序号
|
名称
|
材料
|
|
1
|
电机
|
2
|
泵头
|
铸铁ASTM25B
|
|
|
3
|
机械密封
|
4
|
出水导叶
|
不锈钢AISI304
|
|
|
5
|
支撑导叶
|
不锈钢AISI304
|
6
|
导叶
|
不锈钢AISI304
|
|
7
|
导流器
|
不锈钢AISI304
|
8
|
进出水段
|
不锈钢AISI304
|
|
9
|
底座
|
铸铁ASTM25B
|
10
|
轴承
|
碳化钨
|
|
11
|
叶轮
|
不锈钢AISI304
|
12
|
轴
|
不锈钢AISI316
|
|
13
|
叶轮隔套
|
不锈钢AISI304
|
14
|
耐压筒
|
不锈钢AISI304
|
|
15
|
联轴器
|
碳钢
|
零部件
|
氟橡胶、橡胶
|
产品特点 免费电话：400-062-5858
1、电机：为了保证水泵的高性能，我们自产电机。该标准电机有着高效率和低噪音的优点。 2、筒状密封: 特别设计的筒状密封保证水泵高性能和安全性的同时，带来的灵活性便于水泵的拆卸和维修。
3、多种可选轴封: 多种材质的轴封可供选择。可冲洗的轴封，双端面轴封和磁性轴封。工作温度:-40-300度
4、接口: CDL多级泵采用传统管道泵的设计形式，在管路不做改变的前提下，顺利接入管路系统
5、高压特性:先进的科技和创新的尖端设计，使CDL的扬程高达240米，美观的外形同时提升了配套设施的档次。
6、耐用轴承:CDL的轴承具有较长的寿命主要归功于耐磨材质的衬套，这也使泵在传输含较多杂质的介质的过程中得心应手。
7、材质选择：CDL的泵体材料种类众多：304,316L材质是主要选择；同时，钛金属和铸钢也可选择。
8、多种型号满足多样需求: CDL多级泵有多达15种的规格，过百种的型号满足各种工况的需求。供 水：水厂
应用领域
过滤与输送、水厂分区送水、主管增压、高层建筑增压。
工业增压：流程水系统、清洗系统、高压冲洗系统、消防系统。
水 处 理：超滤系统、反渗透系统、蒸馏系统、分离器和游泳池的水处理系统。
灌 溉：农田灌溉、喷灌、滴灌。
工业液体输送：冷却和空调系统、锅炉给水和冷凝系统、机床配套、酸性和碱性介质输送。
技术参数 免费电话：400-062-5858
|
型号
|
扬程(m)
|
流量(m3/h)
|
电机功率(KW)
|
转速(r/min)
|
|
CDL1-2
|
11.5
|
1
|
0.37
|
2900
|
|
CDL1-3
|
17
|
1
|
0.37
|
2900
|
|
CDL1-4
|
22.5
|
1
|
0.37
|
2900
|
|
CDL1-5
|
28
|
1
|
0.37
|
2900
|
|
CDL1-6
|
33.5
|
1
|
0.37
|
2900
|
|
CDL1-7
|
39
|
1
|
0.37
|
2900
|
|
CDL1-8
|
45
|
1
|
0.55
|
2900
|
|
CDL1-9
|
51
|
1
|
0.55
|
2900
|
|
CDL1-10
|
57
|
1
|
0.55
|
2900
|
|
CDL1-17
|
95
|
1
|
1.1
|
2900
|
|
CDL1-19
|
106
|
1
|
1.1
|
2900
|
|
CDL1-21
|
117
|
1
|
1.1
|
2900
|
|
CDL1-23
|
128
|
1
|
1.1
|
2900
|
|
CDL1-25
|
139
|
1
|
1.5
|
2900
|
|
CDL1-27
|
150
|
1
|
1.5
|
2900
|
|
CDL1-30
|
166
|
1
|
1.5
|
2900
|
|
CDL1-33
|
183
|
1
|
2.2
|
2900
|
|
CDL1-36
|
200
|
1
|
2.2
|
2900
|
|
CDL2-2
|
15
|
2
|
0.37
|
2900
|
|
CDL2-3
|
22
|
2
|
0.37
|
2900
|
|
CDL2-4
|
30
|
2
|
0.55
|
2900
|
|
CDL2-5
|
37
|
2
|
0.55
|
2900
|
|
CDL2-6
|
45
|
2
|
0.75
|
2900
|
|
CDL2-7
|
52
|
2
|
0.75
|
2900
|
|
CDL2-9
|
67
|
2
|
1.1
|
2900
|
|
CDL2-11
|
82
|
2
|
1.1
|
2900
|
|
CDL2-13
|
98
|
2
|
1.5
|
2900
|
|
CDL2-15
|
112
|
2
|
1.5
|
2900
|
|
CDL2-18
|
136
|
2
|
2.2
|
2900
|
|
CDL2-22
|
165
|
2
|
2.2
|
2900
|
|
CDL2-26
|
198
|
2
|
3
|
2900
|
|
CDL3-2
|
9
|
3
|
0.37
|
2900
|
|
CDL3-3
|
14
|
3
|
0.37
|
2900
|
|
CDL3-4
|
19
|
3
|
0.37
|
2900
|
|
CDL3-5
|
23
|
3
|
0.37
|
2900
|
|
CDL3-6
|
28
|
3
|
0.55
|
2900
|
|
CDL3-7
|
32
|
3
|
0.55
|
2900
|
|
CDL3-8
|
37
|
3
|
0.75
|
2900
|
|
CDL3-9
|
42
|
3
|
0.75
|
2900
|
|
CDL3-10
|
47
|
3
|
0.75
|
2900
|
|
CDL3-11
|
51
|
3
|
1.1
|
2900
|
|
CDL3-12
|
55
|
3
|
1.1
|
2900
|
|
CDL3-13
|
60
|
3
|
1.1
|
2900
|
|
CDL3-15
|
69
|
3
|
1.1
|
2900
|
|
CDL3-17
|
79
|
3
|
1.5
|
2900
|
|
CDL3-19
|
88
|
3
|
1.5
|
2900
|
|
CDL3-21
|
98
|
3
|
2.2
|
2900
|
|
CDL3-23
|
107
|
3
|
2.2
|
2900
|
|
CDL3-25
|
116
|
3
|
2.2
|
2900
|
|
CDL3-27
|
124
|
3
|
2.2
|
2900
|
|
CDL3-29
|
133
|
3
|
2.2
|
2900
|
|
CDL3-31
|
142
|
3
|
3
|
2900
|
|
CDL3-33
|
151
|
3
|
3
|
2900
|
|
CDL3-36
|
168
|
3
|
3
|
2900
|
|
CDL4-2
|
15
|
4
|
0.37
|
2900
|
|
CDL4-3
|
24
|
4
|
0.55
|
2900
|
|
CDL4-4
|
32
|
4
|
0.75
|
2900
|
|
CDL4-5
|
40
|
4
|
1.1
|
2900
|
|
CDL4-6
|
48
|
4
|
1.1
|
2900
|
|
CDL4-7
|
56
|
4
|
1.5
|
2900
|
|
CDL4-8
|
64
|
4
|
1.5
|
2900
|
|
CDL4-10
|
81
|
4
|
2.2
|
2900
|
|
CDL4-12
|
95
|
4
|
2.2
|
2900
|
|
CDL4-14
|
112
|
4
|
3
|
2900
|
|
CDL4-16
|
129
|
4
|
3
|
2900
|
|
CDL4-19
|
153
|
4
|
4
|
2900
|
|
CDL4-22
|
178
|
4
|
4
|
2900
|
|
CDL8-2/1
|
9
|
8
|
0.75
|
2900
|
|
CDL8-2
|
18
|
8
|
0.75
|
2900
|
|
CDL8-3
|
27
|
8
|
1.1
|
2900
|
|
CDL8-4
|
36
|
8
|
1.5
|
2900
|
|
CDL8-5
|
45
|
8
|
2.2
|
2900
|
|
CDL8-6
|
54
|
8
|
2.2
|
2900
|
|
CDL8-8
|
73
|
8
|
3
|
2900
|
|
CDL8-10
|
92
|
8
|
4
|
2900
|
|
CDL8-12
|
111
|
8
|
4
|
2900
|
|
CDL8-14
|
130
|
8
|
5.5
|
2900
|
|
CDL8-16
|
148
|
8
|
5.5
|
2900
|
|
CDL8-18
|
167
|
8
|
7.5
|
2900
|
|
CDL8-20
|
186
|
8
|
7.5
|
2900
|
|
CDL12-2
|
20
|
12
|
1.5
|
2900
|
|
CDL12-3
|
30
|
12
|
2.2
|
2900
|
|
CDL12-4
|
40
|
12
|
3
|
2900
|
|
CDL12-5
|
50
|
12
|
3
|
2900
|
|
CDL12-6
|
60
|
12
|
4
|
2900
|
|
CDL12-7
|
70
|
12
|
5.5
|
2900
|
|
CDL12-8
|
80
|
12
|
5.5
|
2900
|
|
CDL12-9
|
91
|
12
|
5.5
|
2900
|
|
CDL12-10
|
101
|
12
|
7.5
|
2900
|
|
CDL12-12
|
121
|
12
|
7.5
|
2900
|
|
CDL12-14
|
141
|
12
|
11
|
2900
|
|
CDL12-16
|
162
|
12
|
11
|
2900
|
|
CDL12-18
|
183
|
12
|
11
|
2900
|
|
CDL16-2
|
22
|
16
|
2.2
|
2900
|
|
CDL16-3
|
34
|
16
|
3
|
2900
|
|
CDL16-4
|
46
|
16
|
4
|
2900
|
|
CDL16-5
|
58
|
16
|
5.5
|
2900
|
|
CDL16-6
|
70
|
16
|
5.5
|
2900
|
|
CDL16-7
|
82
|
16
|
7.5
|
2900
|
|
CDL16-8
|
94
|
16
|
7.5
|
2900
|
|
CDL16-10
|
118
|
16
|
11
|
2900
|
|
CDL16-12
|
141
|
16
|
11
|
2900
|
|
CDL16-14
|
166
|
16
|
15
|
2900
|
|
CDL16-16
|
189
|
16
|
15
|
2900
|
|
CDL20-1
|
10
|
20
|
1.1
|
2900
|
|
CDL20-2
|
23
|
20
|
2.2
|
2900
|
|
CDL20-3
|
35
|
20
|
4
|
2900
|
|
CDL20-4
|
47
|
20
|
5.5
|
2900
|
|
CDL20-5
|
58
|
20
|
5.5
|
2900
|
|
CDL20-6
|
70
|
20
|
7.5
|
2900
|
|
CDL20-7
|
82
|
20
|
7.5
|
2900
|
|
CDL20-8
|
94
|
20
|
11
|
2900
|
|
CDL20-10
|
118
|
20
|
11
|
2900
|
|
CDL20-12
|
142
|
20
|
15
|
2900
|
|
CDL20-14
|
166
|
20
|
15
|
2900
|
|
CDL20-17
|
202
|
20
|
18.5
|
2900
|
|
CDL32-10-1
|
9
|
32
|
1.5
|
2900
|
|
CDL32-10
|
13
|
32
|
2.2
|
2900
|
|
CDL32-20-2
|
20
|
32
|
3
|
2900
|
|
CDL32-20
|
27
|
32
|
4
|
2900
|
|
CDL32-30-2
|
33
|
32
|
5.5
|
2900
|
|
CDL32-30
|
40
|
32
|
5.5
|
2900
|
|
CDL32-40-2
|
46
|
32
|
7.5
|
2900
|
|
CDL32-40
|
53
|
32
|
7.5
|
2900
|
|
CDL32-50-2
|
60
|
32
|
11
|
2900
|
|
CDL32-50
|
67
|
32
|
11
|
2900
|
|
CDL32-60-2
|
74
|
32
|
11
|
2900
|
|
CDL32-60
|
81
|
32
|
11
|
2900
|
|
CDL32-70-2
|
88
|
32
|
15
|
2900
|
|
CDL32-70
|
95
|
32
|
15
|
2900
|
|
CDL32-80-2
|
102
|
32
|
15
|
2900
|
|
CDL32-80
|
109
|
32
|
15
|
2900
|
|
CDL32-90-2
|
117
|
32
|
18.5
|
2900
|
|
CDL32-90
|
124
|
32
|
18.5
|
2900
|
|
CDL32-100-2
|
131
|
32
|
18.5
|
2900
|
|
CDL32-100
|
138
|
32
|
18.5
|
2900
|
|
CDL32-110-2
|
146
|
32
|
22
|
2900
|
|
CDL32-110
|
153
|
32
|
22
|
2900
|
|
CDL32-120-2
|
160
|
32
|
22
|
2900
|
|
CDL32-120
|
167
|
32
|
22
|
2900
|
|
CDL32-130-2
|
174
|
32
|
30
|
2900
|
|
CDL32-130
|
181
|
32
|
30
|
2900
|
|
CDL32-140-2
|
189
|
32
|
30
|
2900
|
|
CDL32-140
|
196
|
32
|
30
|
2900
|
|
CDL32-150-2
|
203
|
32
|
30
|
2900
|
|
CDL32-150
|
210
|
32
|
30
|
2900
|
|
CDL32-160-2
|
218
|
32
|
30
|
2900
|
|
CDL32-160
|
225
|
32
|
30
|
2900
|
|
CDL42-10-1
|
16
|
42
|
3
|
2900
|
|
CDL42-10
|
20
|
42
|
4
|
2900
|
|
CDL42-20-2
|
32
|
42
|
5.5
|
2900
|
|
CDL42-20
|
41
|
42
|
7.5
|
2900
|
|
CDL42-30-2
|
52
|
42
|
11
|
2900
|
|
CDL42-30
|
61
|
42
|
11
|
2900
|
|
CDL42-40-2
|
73
|
42
|
15
|
2900
|
|
CDL42-40
|
81
|
42
|
15
|
2900
|
|
CDL42-50-2
|
93
|
42
|
18.5
|
2900
|
|
CDL42-50
|
101
|
42
|
18.5
|
2900
|
|
CDL42-60-2
|
113
|
42
|
22
|
2900
|
|
CDL42-60
|
122
|
42
|
22
|
2900
|
|
CDL42-70-2
|
134
|
42
|
30
|
2900
|
|
CDL42-70
|
142
|
42
|
30
|
2900
|
|
CDL42-80-2
|
154
|
42
|
30
|
2900
|
|
CDL42-80
|
162
|
42
|
30
|
2900
|
|
CDL42-90-2
|
174
|
42
|
30
|
2900
|
|
CDL42-90
|
183
|
42
|
37
|
2900
|
|
CDL42-100-2
|
194
|
42
|
37
|
2900
|
|
CDL42-100
|
203
|
42
|
37
|
2900
|
|
CDL42-110-2
|
217
|
42
|
45
|
2900
|
|
CDL42-110
|
225
|
42
|
45
|
2900
|
|
CDL42-120-2
|
238
|
42
|
45
|
2900
|
|
CDL42-120
|
247
|
42
|
45
|
2900
|
|
CDL42-130-2
|
259
|
42
|
45
|
2900
|
|
CDL65-10-1
|
13
|
65
|
4
|
2900
|
|
CDL65-10
|
20
|
65
|
5.5
|
2900
|
|
CDL65-20-2
|
26
|
65
|
7.5
|
2900
|
|
CDL65-20-1
|
33
|
65
|
11
|
2900
|
|
CDL65-20
|
40
|
65
|
11
|
2900
|
|
CDL65-30-2
|
46
|
65
|
15
|
2900
|
|
CDL65-30-1
|
53
|
65
|
15
|
2900
|
|
CDL65-30
|
60
|
65
|
18.5
|
2900
|
|
CDL65-40-2
|
66
|
65
|
18.5
|
2900
|
|
CDL65-40-1
|
73
|
65
|
22
|
2900
|
|
CDL65-40
|
80
|
65
|
22
|
2900
|
|
CDL65-50-2
|
88
|
65
|
30
|
2900
|
|
CDL65-50-1
|
95
|
65
|
30
|
2900
|
|
CDL65-50
|
102
|
65
|
30
|
2900
|
|
CDL65-60-2
|
110
|
65
|
30
|
2900
|
|
CDL65-60-1
|
117
|
65
|
37
|
2900
|
|
CDL65-60
|
124
|
65
|
37
|
2900
|
|
CDL65-70-2
|
132
|
65
|
37
|
2900
|
|
CDL65-70-1
|
139
|
65
|
37
|
2900
|
|
CDL65-70
|
146
|
65
|
45
|
2900
|
|
CDL65-80-2
|
154
|
65
|
45
|
2900
|
|
CDL65-80-1
|
161
|
65
|
45
|
2900
|
|
CDL85-10-1
|
14
|
85
|
5.5
|
2900
|
|
CDL85-10
|
20
|
85
|
7.5
|
2900
|
|
CDL85-20-2
|
30
|
85
|
11
|
2900
|
|
CDL85-20
|
41
|
85
|
15
|
2900
|
|
CDL85-30-2
|
52
|
85
|
18.5
|
2900
|
|
CDL85-30
|
64
|
85
|
22
|
2900
|
|
CDL85-40-2
|
75
|
85
|
30
|
2900
|
|
CDL85-40
|
86
|
85
|
30
|
2900
|
|
CDL85-50-2
|
98
|
85
|
37
|
2900
|
|
CDL85-50
|
110
|
85
|
37
|
2900
|
|
CDL85-60-2
|
122
|
85
|
45
|
2900
|
|
CDL85-60
|
134
|
85
|
45
|
2900
|
|
CDL120-10
|
18.5
|
120
|
11
|
2950
|
|
CDL120-20-2
|
28.5
|
120
|
15
|
2950
|
|
CDL120-20-1
|
34.5
|
120
|
18.5
|
2950
|
|
CDL120-20
|
40
|
120
|
22
|
2950
|
|
CDL120-30-2
|
49
|
120
|
30
|
2950
|
|
CDL120-30-1
|
55.5
|
120
|
30
|
2950
|
|
CDL120-30
|
61
|
120
|
30
|
2950
|
|
CDL120-40-2
|
69
|
120
|
37
|
2950
|
|
CDL120-40-1
|
76
|
120
|
37
|
2950
|
|
CDL120-40
|
81
|
120
|
45
|
2950
|
|
CDL120-50-2
|
90
|
120
|
45
|
2950
|
|
CDL120-50-1
|
97
|
120
|
45
|
2950
|
|
CDL120-50
|
101.5
|
120
|
55
|
2950
|
|
CDL120-60-2
|
110
|
120
|
55
|
2950
|
|
CDL120-60-1
|
118
|
120
|
55
|
2950
|
|
CDL120-60
|
123
|
120
|
75
|
2950
|
|
CDL120-70-2
|
130
|
120
|
75
|
2950
|
|
CDL120-70-1
|
137.5
|
120
|
75
|
2950
|
|
CDL120-70
|
145
|
120
|
75
|
2950
|
|
CDL150-10-1
|
12.5
|
150
|
11
|
2950
|
|
CDL150-10
|
18.5
|
150
|
15
|
2950
|
|
CDL150-20-2
|
27.5
|
150
|
18.5
|
2950
|
|
CDL150-20-1
|
35
|
150
|
22
|
2950
|
|
CDL150-20
|
40
|
150
|
30
|
2950
|
|
CDL150-30-2
|
49
|
150
|
30
|
2950
|
|
CDL150-30-1
|
56
|
150
|
37
|
2950
|
|
CDL150-30
|
63
|
150
|
37
|
2950
|
|
CDL150-40-2
|
70.5
|
150
|
45
|
2950
|
|
CDL150-40-1
|
77
|
150
|
45
|
2950
|
|
CDL150-40
|
84
|
150
|
50
|
2950
|
|
CDL150-50-2
|
92
|
150
|
55
|
2950
|
|
CDL150-50-1
|
99
|
150
|
75
|
2950
|
|
CDL150-50
|
106.5
|
150
|
75
|
2950
|
|
CDL150-60-2
|
112
|
150
|
75
|
2950
|
|
CDL150-60-1
|
120.5
|
150
|
75
|
2950
|
|
CDL150-60
|
130
|
150
|
75
|
2950
|
|
CDL200-10-B
|
20
|
200
|
18.5
|
2950
|
|
CDL200-10-A
|
24
|
200
|
22
|
2950
|
|
CDL200-10
|
34
|
200
|
30
|
2950
|
|
CDL200-20-2B
|
41
|
200
|
37
|
2950
|
|
CDL200-20-2A
|
49
|
200
|
45
|
2950
|
|
CDL200-20-A
|
59
|
200
|
55
|
2950
|
|
CDL200-20
|
69
|
200
|
55
|
2950
|
|
CDL200-30-2B
|
75
|
200
|
75
|
2950
|
|
CDL200-30-A-B
|
79
|
200
|
75
|
2950
|
|
CDL200-30-2A
|
84
|
200
|
75
|
2950
|
|
CDL200-30-B
|
89
|
200
|
75
|
2950
|
|
CDL200-30-A
|
93
|
200
|
75
|
2950
|
|
CDL200-30
|
103
|
200
|
90
|
2950
|
|
CDL200-40-2B
|
110
|
200
|
90
|
2950
|
|
CDL200-40-2A
|
118
|
200
|
110
|
2950
|
|
CDL200-40-A
|
128
|
200
|
110
|
2950
|
|
CDL200-40
|
138
|
200
|
110
|
2950
|

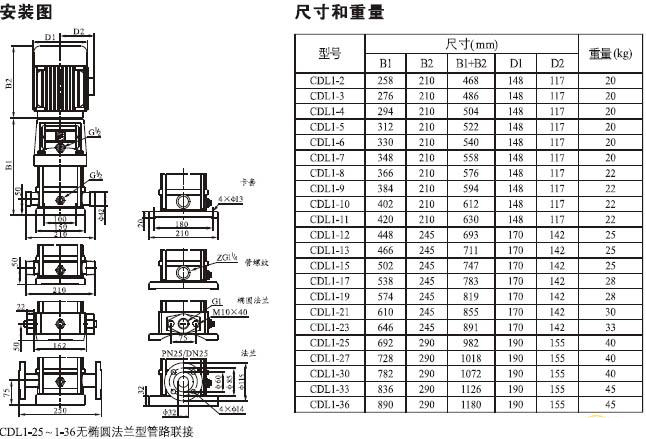

安装尺寸 免费电话：400-062-5858
产品原理
1、采用优良的水力模型和先进的制造工艺，大大提高泵的性能及使用寿命。
2、由于轴封采用材料为硬质合金及氟橡胶的机械密封，可提高泵运行的可靠性及输送介质的温度。
3、泵的过流部分采用不锈钢板冲压焊接而成，使得泵可适用于轻度腐蚀性介质。
4、整体结构紧凑、体积小、重量轻、噪声低、节能效果显著，检修方便。
5、泵的进水口与出水口位于泵座同一水平线上，可直接用于管路当中。
6、采用标准电机，用户可方便地根据需要配备电机。
7、可根据用户需要配备智能保护器，对泵干转、缺相、过载等进行有效保护。
CDLF型轻型不锈钢立式多级泵结构图：
|
序号
|
名称
|
材料
|
序号
|
名称
|
材料
|
|
1
|
电机
|
2
|
泵头
|
铸铁ASTM25B
|
|
|
3
|
机械密封
|
4
|
出水导叶
|
不锈钢AISI304
|
|
|
5
|
支撑导叶
|
不锈钢AISI304
|
6
|
导叶
|
不锈钢AISI304
|
|
7
|
导流器
|
不锈钢AISI304
|
8
|
进出水段
|
不锈钢AISI304
|
|
9
|
底座
|
铸铁ASTM25B
|
10
|
轴承
|
碳化钨
|
|
11
|
叶轮
|
不锈钢AISI304
|
12
|
轴
|
不锈钢AISI316
|
|
13
|
叶轮隔套
|
不锈钢AISI304
|
14
|
耐压筒
|
不锈钢AISI304
|
|
15
|
联轴器
|
碳钢
|
零部件
|
氟橡胶、橡胶
|
产品特点 免费电话：400-062-5858
1、电机：为了保证水泵的高性能，我们自产电机。该标准电机有着高效率和低噪音的优点。 2、筒状密封: 特别设计的筒状密封保证水泵高性能和安全性的同时，带来的灵活性便于水泵的拆卸和维修。
3、多种可选轴封: 多种材质的轴封可供选择。可冲洗的轴封，双端面轴封和磁性轴封。工作温度:-40-300度
4、接口: CDL多级泵采用传统管道泵的设计形式，在管路不做改变的前提下，顺利接入管路系统
5、高压特性:先进的科技和创新的尖端设计，使CDL的扬程高达240米，美观的外形同时提升了配套设施的档次。
6、耐用轴承:CDL的轴承具有较长的寿命主要归功于耐磨材质的衬套，这也使泵在传输含较多杂质的介质的过程中得心应手。
7、材质选择：CDL的泵体材料种类众多：304,316L材质是主要选择；同时，钛金属和铸钢也可选择。
8、多种型号满足多样需求: CDL多级泵有多达15种的规格，过百种的型号满足各种工况的需求。供 水：水厂
应用领域
过滤与输送、水厂分区送水、主管增压、高层建筑增压。
工业增压：流程水系统、清洗系统、高压冲洗系统、消防系统。
水 处 理：超滤系统、反渗透系统、蒸馏系统、分离器和游泳池的水处理系统。
灌 溉：农田灌溉、喷灌、滴灌。
工业液体输送：冷却和空调系统、锅炉给水和冷凝系统、机床配套、酸性和碱性介质输送。
技术参数 免费电话：400-062-5858
|
型号
|
扬程(m)
|
流量(m3/h)
|
电机功率(KW)
|
转速(r/min)
|
|
CDL1-2
|
11.5
|
1
|
0.37
|
2900
|
|
CDL1-3
|
17
|
1
|
0.37
|
2900
|
|
CDL1-4
|
22.5
|
1
|
0.37
|
2900
|
|
CDL1-5
|
28
|
1
|
0.37
|
2900
|
|
CDL1-6
|
33.5
|
1
|
0.37
|
2900
|
|
CDL1-7
|
39
|
1
|
0.37
|
2900
|
|
CDL1-8
|
45
|
1
|
0.55
|
2900
|
|
CDL1-9
|
51
|
1
|
0.55
|
2900
|
|
CDL1-10
|
57
|
1
|
0.55
|
2900
|
|
CDL1-17
|
95
|
1
|
1.1
|
2900
|
|
CDL1-19
|
106
|
1
|
1.1
|
2900
|
|
CDL1-21
|
117
|
1
|
1.1
|
2900
|
|
CDL1-23
|
128
|
1
|
1.1
|
2900
|
|
CDL1-25
|
139
|
1
|
1.5
|
2900
|
|
CDL1-27
|
150
|
1
|
1.5
|
2900
|
|
CDL1-30
|
166
|
1
|
1.5
|
2900
|
|
CDL1-33
|
183
|
1
|
2.2
|
2900
|
|
CDL1-36
|
200
|
1
|
2.2
|
2900
|
|
CDL2-2
|
15
|
2
|
0.37
|
2900
|
|
CDL2-3
|
22
|
2
|
0.37
|
2900
|
|
CDL2-4
|
30
|
2
|
0.55
|
2900
|
|
CDL2-5
|
37
|
2
|
0.55
|
2900
|
|
CDL2-6
|
45
|
2
|
0.75
|
2900
|
|
CDL2-7
|
52
|
2
|
0.75
|
2900
|
|
CDL2-9
|
67
|
2
|
1.1
|
2900
|
|
CDL2-11
|
82
|
2
|
1.1
|
2900
|
|
CDL2-13
|
98
|
2
|
1.5
|
2900
|
|
CDL2-15
|
112
|
2
|
1.5
|
2900
|
|
CDL2-18
|
136
|
2
|
2.2
|
2900
|
|
CDL2-22
|
165
|
2
|
2.2
|
2900
|
|
CDL2-26
|
198
|
2
|
3
|
2900
|
|
CDL3-2
|
9
|
3
|
0.37
|
2900
|
|
CDL3-3
|
14
|
3
|
0.37
|
2900
|
|
CDL3-4
|
19
|
3
|
0.37
|
2900
|
|
CDL3-5
|
23
|
3
|
0.37
|
2900
|
|
CDL3-6
|
28
|
3
|
0.55
|
2900
|
|
CDL3-7
|
32
|
3
|
0.55
|
2900
|
|
CDL3-8
|
37
|
3
|
0.75
|
2900
|
|
CDL3-9
|
42
|
3
|
0.75
|
2900
|
|
CDL3-10
|
47
|
3
|
0.75
|
2900
|
|
CDL3-11
|
51
|
3
|
1.1
|
2900
|
|
CDL3-12
|
55
|
3
|
1.1
|
2900
|
|
CDL3-13
|
60
|
3
|
1.1
|
2900
|
|
CDL3-15
|
69
|
3
|
1.1
|
2900
|
|
CDL3-17
|
79
|
3
|
1.5
|
2900
|
|
CDL3-19
|
88
|
3
|
1.5
|
2900
|
|
CDL3-21
|
98
|
3
|
2.2
|
2900
|
|
CDL3-23
|
107
|
3
|
2.2
|
2900
|
|
CDL3-25
|
116
|
3
|
2.2
|
2900
|
|
CDL3-27
|
124
|
3
|
2.2
|
2900
|
|
CDL3-29
|
133
|
3
|
2.2
|
2900
|
|
CDL3-31
|
142
|
3
|
3
|
2900
|
|
CDL3-33
|
151
|
3
|
3
|
2900
|
|
CDL3-36
|
168
|
3
|
3
|
2900
|
|
CDL4-2
|
15
|
4
|
0.37
|
2900
|
|
CDL4-3
|
24
|
4
|
0.55
|
2900
|
|
CDL4-4
|
32
|
4
|
0.75
|
2900
|
|
CDL4-5
|
40
|
4
|
1.1
|
2900
|
|
CDL4-6
|
48
|
4
|
1.1
|
2900
|
|
CDL4-7
|
56
|
4
|
1.5
|
2900
|
|
CDL4-8
|
64
|
4
|
1.5
|
2900
|
|
CDL4-10
|
81
|
4
|
2.2
|
2900
|
|
CDL4-12
|
95
|
4
|
2.2
|
2900
|
|
CDL4-14
|
112
|
4
|
3
|
2900
|
|
CDL4-16
|
129
|
4
|
3
|
2900
|
|
CDL4-19
|
153
|
4
|
4
|
2900
|
|
CDL4-22
|
178
|
4
|
4
|
2900
|
|
CDL8-2/1
|
9
|
8
|
0.75
|
2900
|
|
CDL8-2
|
18
|
8
|
0.75
|
2900
|
|
CDL8-3
|
27
|
8
|
1.1
|
2900
|
|
CDL8-4
|
36
|
8
|
1.5
|
2900
|
|
CDL8-5
|
45
|
8
|
2.2
|
2900
|
|
CDL8-6
|
54
|
8
|
2.2
|
2900
|
|
CDL8-8
|
73
|
8
|
3
|
2900
|
|
CDL8-10
|
92
|
8
|
4
|
2900
|
|
CDL8-12
|
111
|
8
|
4
|
2900
|
|
CDL8-14
|
130
|
8
|
5.5
|
2900
|
|
CDL8-16
|
148
|
8
|
5.5
|
2900
|
|
CDL8-18
|
167
|
8
|
7.5
|
2900
|
|
CDL8-20
|
186
|
8
|
7.5
|
2900
|
|
CDL12-2
|
20
|
12
|
1.5
|
2900
|
|
CDL12-3
|
30
|
12
|
2.2
|
2900
|
|
CDL12-4
|
40
|
12
|
3
|
2900
|
|
CDL12-5
|
50
|
12
|
3
|
2900
|
|
CDL12-6
|
60
|
12
|
4
|
2900
|
|
CDL12-7
|
70
|
12
|
5.5
|
2900
|
|
CDL12-8
|
80
|
12
|
5.5
|
2900
|
|
CDL12-9
|
91
|
12
|
5.5
|
2900
|
|
CDL12-10
|
101
|
12
|
7.5
|
2900
|
|
CDL12-12
|
121
|
12
|
7.5
|
2900
|
|
CDL12-14
|
141
|
12
|
11
|
2900
|
|
CDL12-16
|
162
|
12
|
11
|
2900
|
|
CDL12-18
|
183
|
12
|
11
|
2900
|
|
CDL16-2
|
22
|
16
|
2.2
|
2900
|
|
CDL16-3
|
34
|
16
|
3
|
2900
|
|
CDL16-4
|
46
|
16
|
4
|
2900
|
|
CDL16-5
|
58
|
16
|
5.5
|
2900
|
|
CDL16-6
|
70
|
16
|
5.5
|
2900
|
|
CDL16-7
|
82
|
16
|
7.5
|
2900
|
|
CDL16-8
|
94
|
16
|
7.5
|
2900
|
|
CDL16-10
|
118
|
16
|
11
|
2900
|
|
CDL16-12
|
141
|
16
|
11
|
2900
|
|
CDL16-14
|
166
|
16
|
15
|
2900
|
|
CDL16-16
|
189
|
16
|
15
|
2900
|
|
CDL20-1
|
10
|
20
|
1.1
|
2900
|
|
CDL20-2
|
23
|
20
|
2.2
|
2900
|
|
CDL20-3
|
35
|
20
|
4
|
2900
|
|
CDL20-4
|
47
|
20
|
5.5
|
2900
|
|
CDL20-5
|
58
|
20
|
5.5
|
2900
|
|
CDL20-6
|
70
|
20
|
7.5
|
2900
|
|
CDL20-7
|
82
|
20
|
7.5
|
2900
|
|
CDL20-8
|
94
|
20
|
11
|
2900
|
|
CDL20-10
|
118
|
20
|
11
|
2900
|
|
CDL20-12
|
142
|
20
|
15
|
2900
|
|
CDL20-14
|
166
|
20
|
15
|
2900
|
|
CDL20-17
|
202
|
20
|
18.5
|
2900
|
|
CDL32-10-1
|
9
|
32
|
1.5
|
2900
|
|
CDL32-10
|
13
|
32
|
2.2
|
2900
|
|
CDL32-20-2
|
20
|
32
|
3
|
2900
|
|
CDL32-20
|
27
|
32
|
4
|
2900
|
|
CDL32-30-2
|
33
|
32
|
5.5
|
2900
|
|
CDL32-30
|
40
|
32
|
5.5
|
2900
|
|
CDL32-40-2
|
46
|
32
|
7.5
|
2900
|
|
CDL32-40
|
53
|
32
|
7.5
|
2900
|
|
CDL32-50-2
|
60
|
32
|
11
|
2900
|
|
CDL32-50
|
67
|
32
|
11
|
2900
|
|
CDL32-60-2
|
74
|
32
|
11
|
2900
|
|
CDL32-60
|
81
|
32
|
11
|
2900
|
|
CDL32-70-2
|
88
|
32
|
15
|
2900
|
|
CDL32-70
|
95
|
32
|
15
|
2900
|
|
CDL32-80-2
|
102
|
32
|
15
|
2900
|
|
CDL32-80
|
109
|
32
|
15
|
2900
|
|
CDL32-90-2
|
117
|
32
|
18.5
|
2900
|
|
CDL32-90
|
124
|
32
|
18.5
|
2900
|
|
CDL32-100-2
|
131
|
32
|
18.5
|
2900
|
|
CDL32-100
|
138
|
32
|
18.5
|
2900
|
|
CDL32-110-2
|
146
|
32
|
22
|
2900
|
|
CDL32-110
|
153
|
32
|
22
|
2900
|
|
CDL32-120-2
|
160
|
32
|
22
|
2900
|
|
CDL32-120
|
167
|
32
|
22
|
2900
|
|
CDL32-130-2
|
174
|
32
|
30
|
2900
|
|
CDL32-130
|
181
|
32
|
30
|
2900
|
|
CDL32-140-2
|
189
|
32
|
30
|
2900
|
|
CDL32-140
|
196
|
32
|
30
|
2900
|
|
CDL32-150-2
|
203
|
32
|
30
|
2900
|
|
CDL32-150
|
210
|
32
|
30
|
2900
|
|
CDL32-160-2
|
218
|
32
|
30
|
2900
|
|
CDL32-160
|
225
|
32
|
30
|
2900
|
|
CDL42-10-1
|
16
|
42
|
3
|
2900
|
|
CDL42-10
|
20
|
42
|
4
|
2900
|
|
CDL42-20-2
|
32
|
42
|
5.5
|
2900
|
|
CDL42-20
|
41
|
42
|
7.5
|
2900
|
|
CDL42-30-2
|
52
|
42
|
11
|
2900
|
|
CDL42-30
|
61
|
42
|
11
|
2900
|
|
CDL42-40-2
|
73
|
42
|
15
|
2900
|
|
CDL42-40
|
81
|
42
|
15
|
2900
|
|
CDL42-50-2
|
93
|
42
|
18.5
|
2900
|
|
CDL42-50
|
101
|
42
|
18.5
|
2900
|
|
CDL42-60-2
|
113
|
42
|
22
|
2900
|
|
CDL42-60
|
122
|
42
|
22
|
2900
|
|
CDL42-70-2
|
134
|
42
|
30
|
2900
|
|
CDL42-70
|
142
|
42
|
30
|
2900
|
|
CDL42-80-2
|
154
|
42
|
30
|
2900
|
|
CDL42-80
|
162
|
42
|
30
|
2900
|
|
CDL42-90-2
|
174
|
42
|
30
|
2900
|
|
CDL42-90
|
183
|
42
|
37
|
2900
|
|
CDL42-100-2
|
194
|
42
|
37
|
2900
|
|
CDL42-100
|
203
|
42
|
37
|
2900
|
|
CDL42-110-2
|
217
|
42
|
45
|
2900
|
|
CDL42-110
|
225
|
42
|
45
|
2900
|
|
CDL42-120-2
|
238
|
42
|
45
|
2900
|
|
CDL42-120
|
247
|
42
|
45
|
2900
|
|
CDL42-130-2
|
259
|
42
|
45
|
2900
|
|
CDL65-10-1
|
13
|
65
|
4
|
2900
|
|
CDL65-10
|
20
|
65
|
5.5
|
2900
|
|
CDL65-20-2
|
26
|
65
|
7.5
|
2900
|
|
CDL65-20-1
|
33
|
65
|
11
|
2900
|
|
CDL65-20
|
40
|
65
|
11
|
2900
|
|
CDL65-30-2
|
46
|
65
|
15
|
2900
|
|
CDL65-30-1
|
53
|
65
|
15
|
2900
|
|
CDL65-30
|
60
|
65
|
18.5
|
2900
|
|
CDL65-40-2
|
66
|
65
|
18.5
|
2900
|
|
CDL65-40-1
|
73
|
65
|
22
|
2900
|
|
CDL65-40
|
80
|
65
|
22
|
2900
|
|
CDL65-50-2
|
88
|
65
|
30
|
2900
|
|
CDL65-50-1
|
95
|
65
|
30
|
2900
|
|
CDL65-50
|
102
|
65
|
30
|
2900
|
|
CDL65-60-2
|
110
|
65
|
30
|
2900
|
|
CDL65-60-1
|
117
|
65
|
37
|
2900
|
|
CDL65-60
|
124
|
65
|
37
|
2900
|
|
CDL65-70-2
|
132
|
65
|
37
|
2900
|
|
CDL65-70-1
|
139
|
65
|
37
|
2900
|
|
CDL65-70
|
146
|
65
|
45
|
2900
|
|
CDL65-80-2
|
154
|
65
|
45
|
2900
|
|
CDL65-80-1
|
161
|
65
|
45
|
2900
|
|
CDL85-10-1
|
14
|
85
|
5.5
|
2900
|
|
CDL85-10
|
20
|
85
|
7.5
|
2900
|
|
CDL85-20-2
|
30
|
85
|
11
|
2900
|
|
CDL85-20
|
41
|
85
|
15
|
2900
|
|
CDL85-30-2
|
52
|
85
|
18.5
|
2900
|
|
CDL85-30
|
64
|
85
|
22
|
2900
|
|
CDL85-40-2
|
75
|
85
|
30
|
2900
|
|
CDL85-40
|
86
|
85
|
30
|
2900
|
|
CDL85-50-2
|
98
|
85
|
37
|
2900
|
|
CDL85-50
|
110
|
85
|
37
|
2900
|
|
CDL85-60-2
|
122
|
85
|
45
|
2900
|
|
CDL85-60
|
134
|
85
|
45
|
2900
|
|
CDL120-10
|
18.5
|
120
|
11
|
2950
|
|
CDL120-20-2
|
28.5
|
120
|
15
|
2950
|
|
CDL120-20-1
|
34.5
|
120
|
18.5
|
2950
|
|
CDL120-20
|
40
|
120
|
22
|
2950
|
|
CDL120-30-2
|
49
|
120
|
30
|
2950
|
|
CDL120-30-1
|
55.5
|
120
|
30
|
2950
|
|
CDL120-30
|
61
|
120
|
30
|
2950
|
|
CDL120-40-2
|
69
|
120
|
37
|
2950
|
|
CDL120-40-1
|
76
|
120
|
37
|
2950
|
|
CDL120-40
|
81
|
120
|
45
|
2950
|
|
CDL120-50-2
|
90
|
120
|
45
|
2950
|
|
CDL120-50-1
|
97
|
120
|
45
|
2950
|
|
CDL120-50
|
101.5
|
120
|
55
|
2950
|
|
CDL120-60-2
|
110
|
120
|
55
|
2950
|
|
CDL120-60-1
|
118
|
120
|
55
|
2950
|
|
CDL120-60
|
123
|
120
|
75
|
2950
|
|
CDL120-70-2
|
130
|
120
|
75
|
2950
|
|
CDL120-70-1
|
137.5
|
120
|
75
|
2950
|
|
CDL120-70
|
145
|
120
|
75
|
2950
|
|
CDL150-10-1
|
12.5
|
150
|
11
|
2950
|
|
CDL150-10
|
18.5
|
150
|
15
|
2950
|
|
CDL150-20-2
|
27.5
|
150
|
18.5
|
2950
|
|
CDL150-20-1
|
35
|
150
|
22
|
2950
|
|
CDL150-20
|
40
|
150
|
30
|
2950
|
|
CDL150-30-2
|
49
|
150
|
30
|
2950
|
|
CDL150-30-1
|
56
|
150
|
37
|
2950
|
|
CDL150-30
|
63
|
150
|
37
|
2950
|
|
CDL150-40-2
|
70.5
|
150
|
45
|
2950
|
|
CDL150-40-1
|
77
|
150
|
45
|
2950
|
|
CDL150-40
|
84
|
150
|
50
|
2950
|
|
CDL150-50-2
|
92
|
150
|
55
|
2950
|
|
CDL150-50-1
|
99
|
150
|
75
|
2950
|
|
CDL150-50
|
106.5
|
150
|
75
|
2950
|
|
CDL150-60-2
|
112
|
150
|
75
|
2950
|
|
CDL150-60-1
|
120.5
|
150
|
75
|
2950
|
|
CDL150-60
|
130
|
150
|
75
|
2950
|
|
CDL200-10-B
|
20
|
200
|
18.5
|
2950
|
|
CDL200-10-A
|
24
|
200
|
22
|
2950
|
|
CDL200-10
|
34
|
200
|
30
|
2950
|
|
CDL200-20-2B
|
41
|
200
|
37
|
2950
|
|
CDL200-20-2A
|
49
|
200
|
45
|
2950
|
|
CDL200-20-A
|
59
|
200
|
55
|
2950
|
|
CDL200-20
|
69
|
200
|
55
|
2950
|
|
CDL200-30-2B
|
75
|
200
|
75
|
2950
|
|
CDL200-30-A-B
|
79
|
200
|
75
|
2950
|
|
CDL200-30-2A
|
84
|
200
|
75
|
2950
|
|
CDL200-30-B
|
89
|
200
|
75
|
2950
|
|
CDL200-30-A
|
93
|
200
|
75
|
2950
|
|
CDL200-30
|
103
|
200
|
90
|
2950
|
|
CDL200-40-2B
|
110
|
200
|
90
|
2950
|
|
CDL200-40-2A
|
118
|
200
|
110
|
2950
|
|
CDL200-40-A
|
128
|
200
|
110
|
2950
|
|
CDL200-40
|
138
|
200
|
110
|
2950
|
安装尺寸 免费电话：400-062-5858
