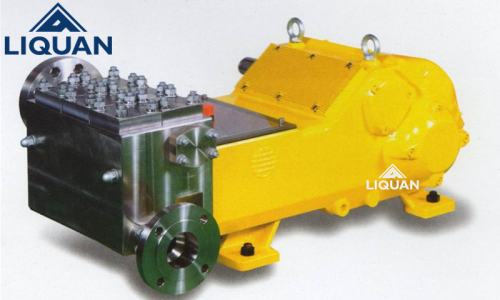

3DP-40型高压往复泵是由电动机、联轴器、减速器、传动部分、泵头部分、公共底座等组成。它是由电动机通过减速器、皮带传动或无级调速器，带动曲轴旋转，推动连杆经滑块（十字头）使柱塞作直线往复运动，在泵头进口阀的启闭作用下达到吸排液目的。高压往复泵泵头材料可根据用户输送各种高压液体需要，采用锻造碳钢合金、不锈钢等，进出口阀座、阀套、阀片填料函、柱塞等主要过流部分采用2Cr13、不锈钢、非金属材料，阀球采用9Cr13、陶瓷、F46等材质。
|
泵推力：1200k gRated Plunger Load:1200kg |
泵行程：40mm Stroke Length:40mm |
泵重量：250kg Weight:250kg |
|||||||||||
|
柱塞直径mm |
60 |
55 |
50 |
43 |
35 |
30 |
27 |
24 |
22 |
19 |
17 |
15 |
|
|
工作压力Mpa |
2 |
4 |
6 |
8 |
12 |
16 |
20 |
25 |
30 |
40 |
50 |
60 |
|
|
泵转速min |
流量 L/min M3/h 功率 KW |
||||||||||||
|
90 |
L/min |
30 |
25 |
21 |
15 |
10 |
7.6 |
6.1 |
4.8 |
4.1 |
3 |
2.4 |
2.1 |
|
M3/h |
1.8 |
1.5 |
1.2 |
0.9 |
0.62 |
0.45 |
0.37 |
0.29 |
0.24 |
0.18 |
0.14 |
0.12 |
|
|
KW |
1.2 |
2 |
2.5 |
2.4 |
2.4 |
2.43 |
2.44 |
2.4 |
2.46 |
2.4 |
2.4 |
2.52 |
|
|
120 |
L/min |
40 |
34 |
28 |
21 |
14 |
10 |
8.2 |
6.5 |
5.4 |
4 |
3.2 |
2.5 |
|
M3/h |
2.4 |
2 |
1.7 |
1.2 |
0.8 |
0.61 |
0.49 |
0.39 |
0.32 |
0.24 |
0.19 |
0.15 |
|
|
KW |
1.6 |
2.72 |
3.36 |
3.36 |
3.36 |
3.2 |
3.28 |
3.25 |
3.24 |
3.2 |
3.2 |
3 |
|
|
140 |
L/min |
47 |
39 |
32 |
24 |
16 |
12 |
9.6 |
7.6 |
6.3 |
4.7 |
3.8 |
2.9 |
|
M3/h |
2.8 |
2.4 |
1.9 |
1.46 |
0.97 |
0.72 |
0.57 |
0.45 |
0.38 |
0.28 |
0.22 |
0.17 |
|
|
KW |
1.8 |
3.12 |
3.84 |
3.84 |
3.84 |
3.84 |
3.84 |
3.8 |
3.78 |
3.76 |
3.8 |
3.48 |
|
|
160 |
L/min |
54 |
45 |
38 |
28 |
18 |
13 |
11 |
8 |
7 |
5 |
4 |
3 |
|
M3/h |
3.2 |
2.7 |
2.3 |
1.68 |
1.08 |
0.78 |
0.66 |
0.48 |
0.42 |
0.3 |
0.24 |
0.18 |
|
|
KW |
2 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
|
|
220 |
L/min |
75 |
62 |
52 |
38 |
25 |
18 |
15 |
12 |
10 |
7 |
6 |
4 |
|
M3/h |
4.5 |
3.7 |
3.11 |
2.26 |
1.5 |
1.08 |
0.9 |
0.72 |
0.6 |
0.42 |
0.36 |
0.24 |
|
|
KW |
3 |
5 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
5 |
|
|
300 |
L/min |
102 |
85 |
70 |
52 |
34 |
25 |
20 |
16 |
13 |
10 |
8 |
6 |
|
M3/h |
6.11 |
5.19 |
4.19 |
3.11 |
2.04 |
1.5 |
1.2 |
0.96 |
0.78 |
0.6 |
0.48 |
0.36 |
|
|
KW |
4 |
7 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
7 |
|
|
350 |
L/min |
118 |
100 |
82 |
60 |
40 |
30 |
24 |
19 |
16 |
12 |
9 |
7 |
|
M3/h |
7.06 |
5.99 |
4.91 |
3.59 |
2.39 |
1.8 |
1.44 |
1.14 |
0.96 |
0.72 |
0.54 |
0.42 |
|
|
KW |
5 |
8 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
9 |
8 |
|
|
400 |
L/min |
135 |
114 |
94 |
70 |
46 |
34 |
27 |
22 |
18 |
13 |
11 |
8 |
|
M3/h |
8.08 |
6.83 |
5.63 |
4.19 |
2.75 |
2.04 |
1.62 |
1.32 |
1.08 |
0.78 |
0.66 |
0.48 |
|
|
KW |
5 |
9 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
10 |
11 |
10 |
|
|
450 |
L/min |
153 |
128 |
106 |
78 |
52 |
38 |
31 |
24 |
20 |
15 |
12 |
9 |
|
M3/h |
9.16 |
7.66 |
6.35 |
4.67 |
3.11 |
2.28 |
1.86 |
1.44 |
1.2 |
0.9 |
0.72 |
0.54 |
|
|
KW |
6 |
10 |
13 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
11 |
|
